Foshan Anheda New Material Co., Ltd
| Tipo de pagamento: | L/C,T/T,D/P,D/A |
| Incoterm: | FOB,CFR,CIF,EXW,FCA,DDP |
| Quantidade de pedido mínimo: | 1 Kilogram |
| transporte: | Land,Air,Ocean,Express |
| porta: | ShenZhen,GuangZhou |
Sombra:
Modelo: AHD-POM
marca: AHD
Origin: China
Certificação: ISO,SGS,ROHS,FDA,TUV
Lugar De Origem: China
Dia (mm): 1-250
Tamanho (mm): 1000/2500
Color: White/Black
| Unidades de venda | : | Kilogram |
| Tipo de pacote | : | Embalagem para exportação |
| Exemplo de imagem | : |
|
| Baixar | : |
|
The file is encrypted. Please fill in the following information to continue accessing it

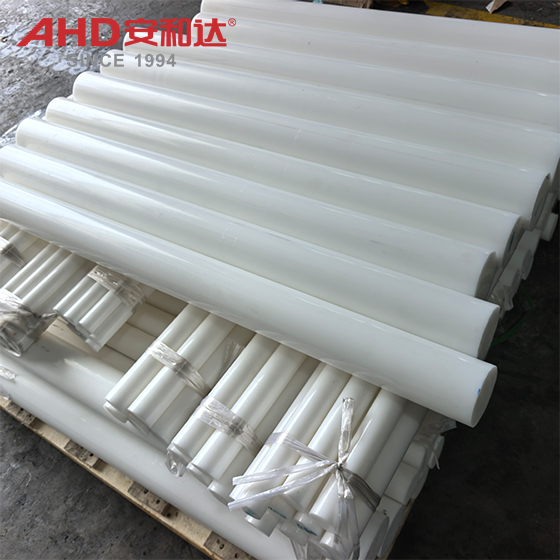

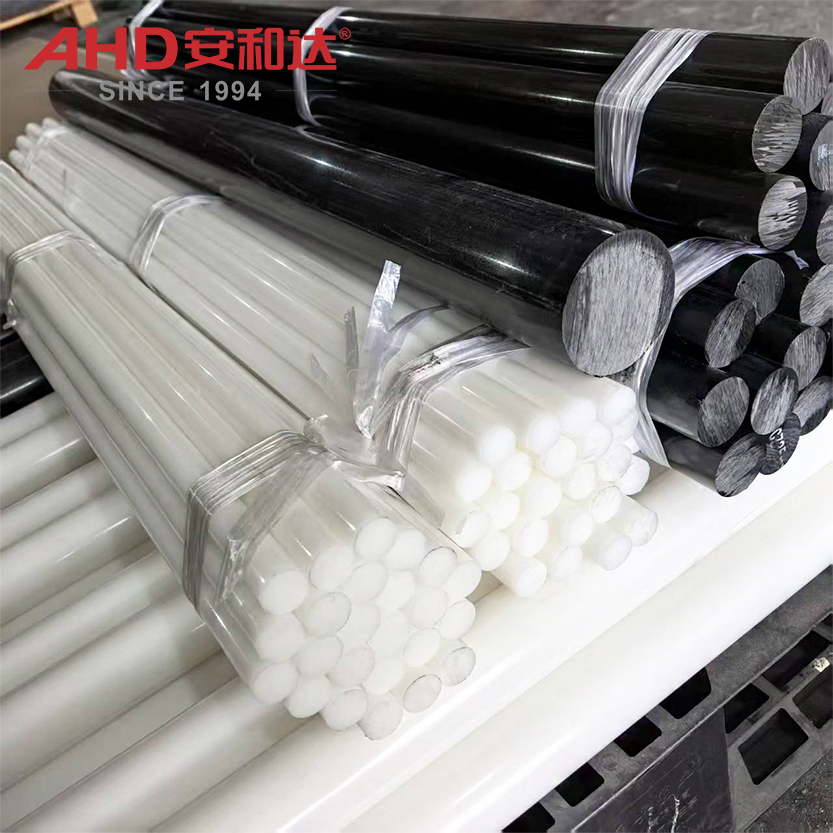

| Item | POM-C (Polyoxymethylene) sheet/rod |
|---|---|
| Heat resistance (continuous) | 115℃ |
| Heat resistance (short-term) | 140℃ |
| Melting point | 165℃ |
| Glass transition temperature | — |
| Linear thermal expansion coefficient (average 23~100℃) | 110×10⁻⁶ m/(m·k) |
| Linear thermal expansion coefficient (average 23--150℃) | 125×10⁻⁶ m/(m·k) |
| Flammability(UL94) | HB |
| Tensile modulus of elasticity | 3100MPa |
| Water absorption (23℃, 24h) | 0.2% |
| Water absorption (23℃) | 0.85% |
| Bending tensile stress / Tensile stress off shock | 68 / — MPa |
| Breaking tensile strain | 0.35 |
| Compressive stress (normal strain-1%/2%) | 19 / 35MPa |
| Pendulum gap impact test | 7 |
| Friction coefficient | 0.32 |
| Rockwell hardness | M84 |
| Dielectric strength | 20 |
| Volume resistance | 10¹⁴ Ω·cm |
| Surface resistance | 10¹³ Ω |
| Relative dielectric constant (100HZ/1MHz) | 3.8 / 3.8 |
| Critical tracking index(CTI) | 600 |
